Rutland Weathered Bronze Designer Overhead Door Closer | TS9205WB (12137)

Rutland Weathered Bronze Designer Overhead Door Closer | TS.9205 WB

• Renown high efficiency, quality, reliability & ease of opening
• Snap fix connection arm set for ease of fitting
• Twin Locking machine screws
• Double spring action for smooth operation
• Adjustable power closing speed: EN 2-5
• Adjustable delayed action
• Adjustable latch speed
• Adjustable back check
• Rut Lock
• 35 year guarantee
• Universal application
• Easy to read instructions, saves fitting time
• Temperature stable hydraulic oil used between -30degC - +60degC
• Fire tested to 120 mins
• Manufactured by Rutland

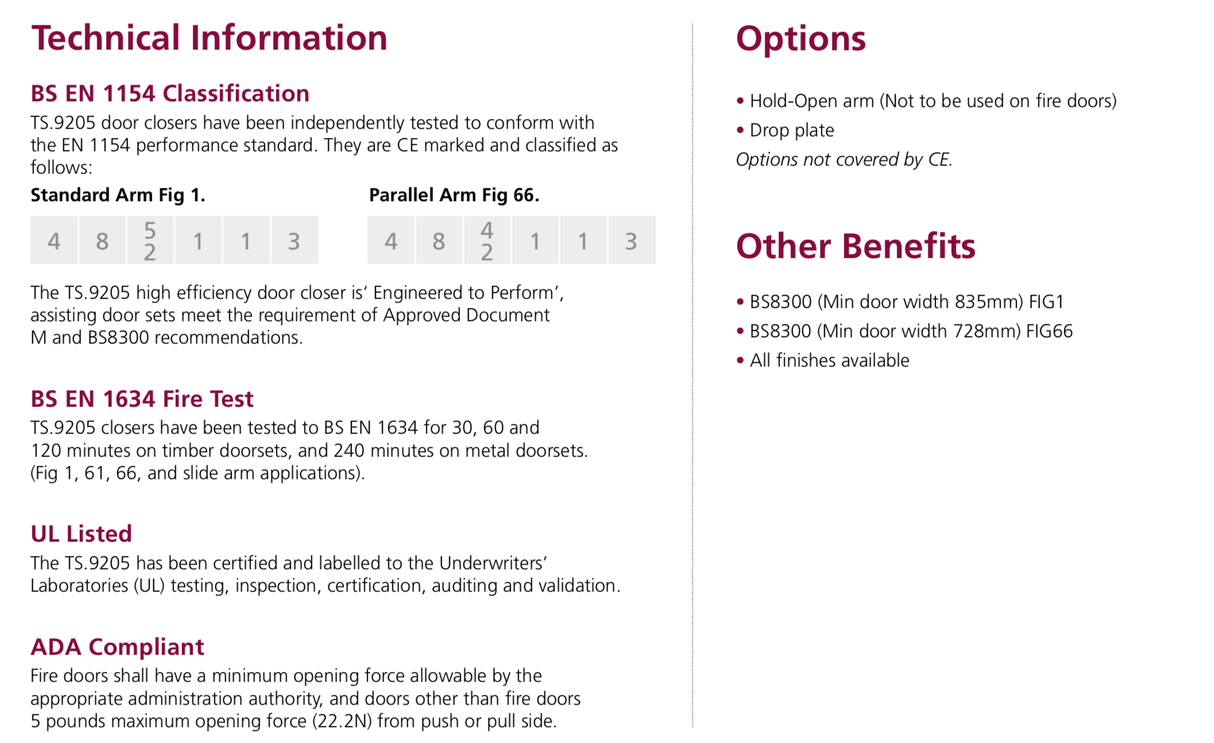

Technical specification (see image):

• BS EN 1154 Classification
• BS EN 1634
• CE 1812
• UKCA 1720
• Certifire CF6144
• IFCC Certification
• UL10C
• UL228
• UKCA & EU CE Declaration of Performance
• BS8300 (min door width 835mm FIG 1
• BS8300 (min door width 728mm) FIG 66
• 30, 60 & 120 min on timber doors
• 240 mins on metal doors
• CE Standard Arm Fig 1
• CE Parallel Arm Fig 66
• Meets requirements for Document M & BS8300 recommendations
• Certified & labelled to Underwriters Laboratories UL testing
• ADA compliant
• DoP 9205CPR01.07.13

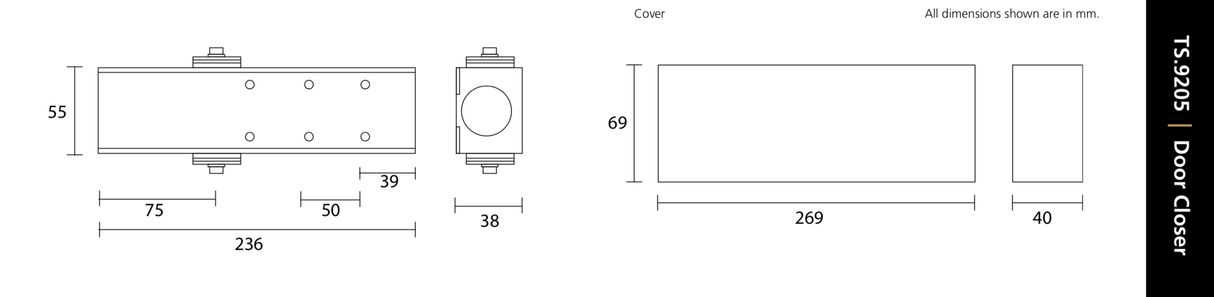

Dimensions (see image):

• Cover size: 269mm x 69mm x 40mm
• Max opening angle: 180 degree
• Max door width: 1250mm
• Max door weight: 110kg
• Min door: 835mm Fig 1
• Min door: 728mm Fig 66

TS.9205DABC.SRFB.WBWB
